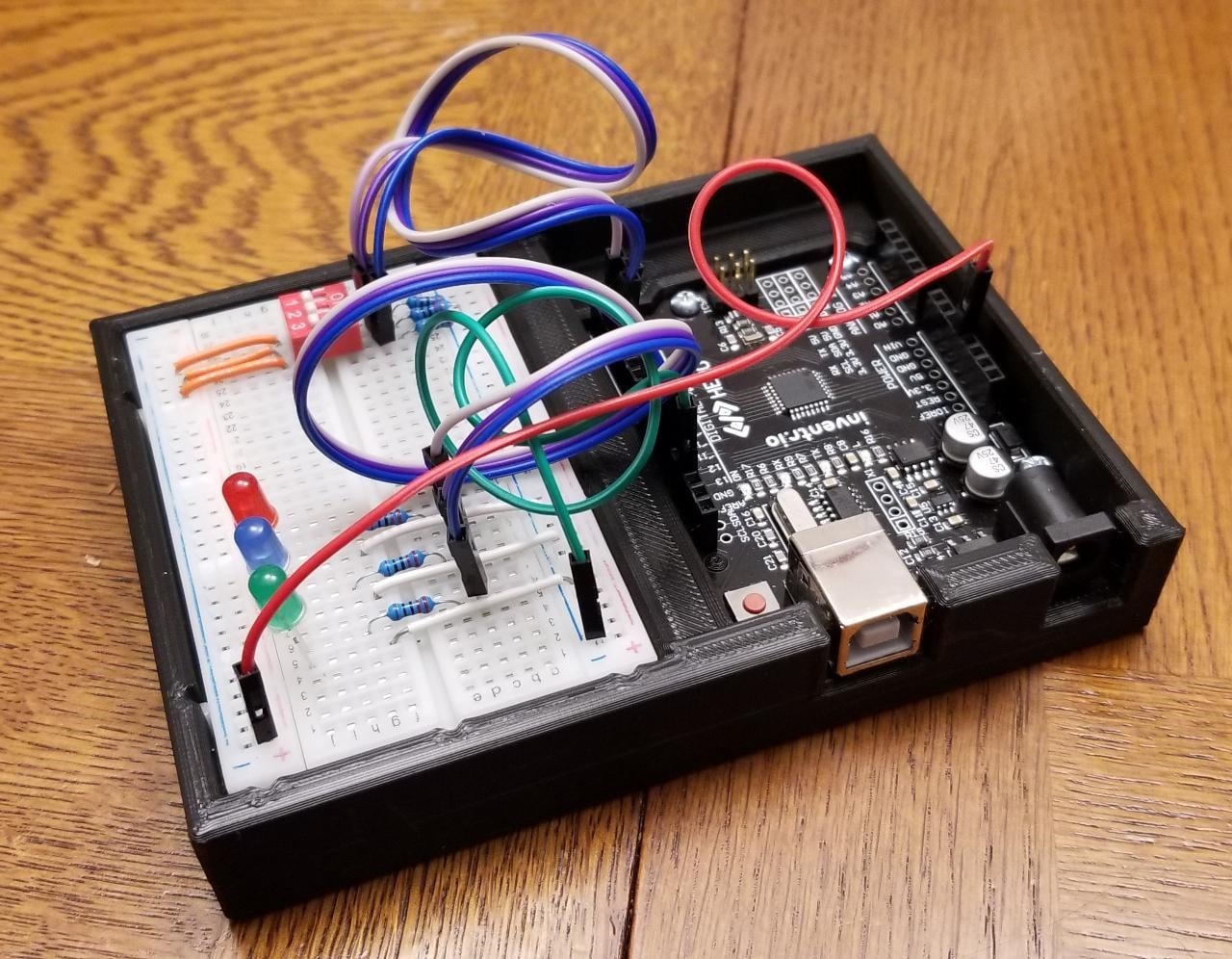

Tray for Mounting Arduino Hero and Breadboard

256 downloads · 3 years ago · This is deigned for mounting the Arduino Hero and breadboard that came with the 30 Days Lost in Spac

Description

This is deigned for mounting the Arduino Hero and breadboard that came with the 30 Days Lost in Space adventure kit. You will need (3) #4x40 x 3/8" Machine Screws and matching nuts to attach the HERO. You can use the adhesive backing on the back of the bread board or just friction-fit it. There is an optional lid with 28mm of internal clearance if you want to be able to close things up but leave components plugged in.

Community Makes (1)

Just downloaded it, sliced it with no changes and hit print. No issues.

Now I’m just waiting for the hardware to be delivered so that I can secure the board.

Printing the cover next.

The cover printed beautifully and fits perfectly.

Community Makes (1)

Discussions

brianka19614 months ago

Just downloaded it, sliced it with no changes and hit print. No issues. Now I’m just waiting for the hardware to be delivered so that I can secure the board. Printing the cover next. The cover printed beautifully and fits perfectly.

PrinterFlashforge Adventurer 5M

itgrad381 year ago

I made this today at my local library. Works perfectly! Thanks for the file. This will make it easier to manage the chaos.

brianka19614 months ago

Hey there. l just got the Cogsworth City and 37 Sensor kits. Will this work with the HERO R3 board as well? It looks like the best way to keep everything together in a neat package.

brianka19614 months ago

Answered my own question. See the make I just uploaded. Thanks for a great Thang!

tanvanman1 year ago

hello, I would like to import this into a program so I can change a couple things on it to suit me but I can't import this file type, how can I change it to an stl, obj or svg file?

lewis.miller7 months ago

Meshmixer or Fusion 360 should let you convert it to STL I actually design most all of my prints in Fusion 360 and you can use the personal version for free.
